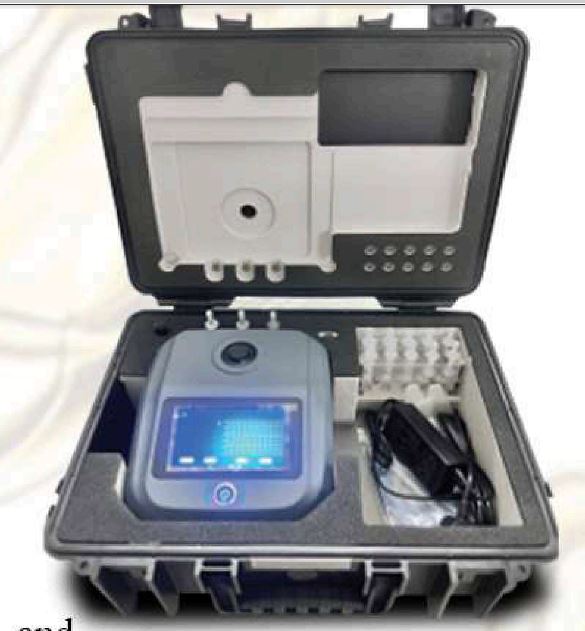

Fast measurement 2 seconds
Sample size: 2mg Grease/2ml Oil
Touchscreen: 5.5inch
Battery life: >5 hours
Sensitivity: lmg/L (PPM)
Detection repeatability: <l % RSD
Calibration Standard: 0mg/L & I 050mg/L
Complys: ASTM D8120
Test range: 0-5500 mg/L (PPM)
Power: AC 100-240V, 50/60Hz
Temperature range: 0-50°C
Dimension & Weight: 250x218xl33(mm); 2.7KG
Consumable: 2ml oil tube and grease h1be
Standard package: Standard calibration sample of 0mg/L and 1050mg/L l00pcs oil/grease tube, power adapter, USB drive and user manual.

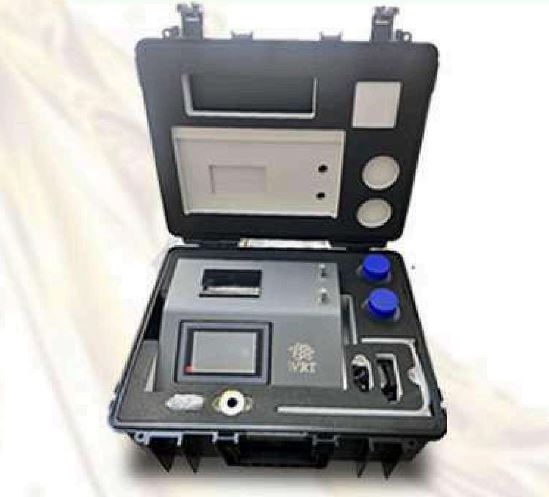

Oil samples can be tested instantly with printed test result. Consumable not required
Easy to maintain.
Convenient to use,
5-inch touch screen display.
Rechargeable battery - 4 hours operation
Inbuild heating device

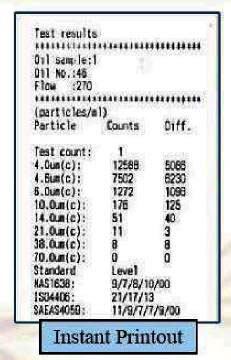

Instant printout of test result.
Equipped with industrial carrycase.
Test time: 5 Seconds
Oil sample volume: Around 10ml
Dimension &Weight: 387x289x104 mm; 3KG
Viscosity: l~IOO0cSt, Accuracy: ±4~9%
Density: 600~1250 kg/m', Accuracy: ±3%
Oil quality (Dielectric constant): 1~6, Accuracy: ±6%
Temperature: O~l 10°C (Accuracy: ±0.3°C)
Water Activity (Humidity/Saturation): 0~1 aW, Accuracy: ±0.02 aW
Moisture content (dissolved water): 0~2000PPM, Accuracy: ±10% or
10 PPM, whichever the larger (default calibrated with hydrauUc oil #68)

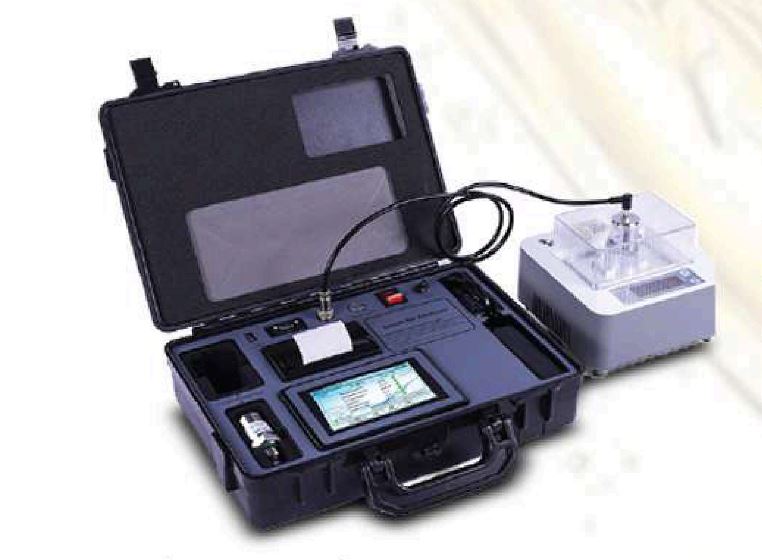

WJS-150 Portable Particle Counter works on principle of light extinction (or light-blockage) and is used to detect the size and quantity of solid particles in liquid.
Light source: Semiconductor laser
Particle size range: 1um~lO0um
Sensitivity: 1um (ISO4402) or 4um (C) (ISO 11171)
Particle counting accuracy: ±10% or ±0.5 level
Test Repeatability: RSD<5%
Off-line viscosity detection: :'Sl00cSt (With a pressure device to 400cSt)
Detection channel: 8 Channels
Calibration standard: ISO4402 & ISO11171
Test standards: ISO4406, NAS1638, TOCT17216, SAS4059D, SAE749D and user define particle size;
Sampling volume: 10ml, sampling volume accuracy: <±3%
Detection velocity: 0~60m L/min
Cleaning velocity: 0-60m L/min
On-line detection pressure: 0.1 -0.6MPa (With a pressure device to 41 Mpa)
Liquid temperature: 0-60°C
Dimension & Weight: 268x246x148mm; 6KG
Additional accessories (optional): WRT-T Pressure Sampling device, Ultrasonic cleaner, Sample Shaker.
TI1e WYTD-3 FeITous Debris Monitor can measure the PQ index (total wear debris content) of oil/grease samples, the wear condition of the equipment can be detected and monitor the abn01mal wear at the eai-ly stage for predictive equipment maintenance.
Display: 5. 6-inch Touchscreen (640*480)
Measuring Range: 0 -15000PQ
Accuracy: 200PQ-15000PQ <±1%; 0PQ-200PQ<±3 PQ;
Detect Wear Debris:>1um (Ferromagnetic wear particles)
Test time on each sample: 11 second for one time measurement
Package include: Standard calibration sample of 0PQ and 750PQ, Validation Sample: 100~120PQ, lO0pcs 5ml oil cup, power adapter, RS232 cable,user manual.
Power: AC 100V-240V 50Hz/60Hz
Power Dissipation: < l5W
USB P011: Software update/Test records exp01t
RS232 port: To connect with computer through ModBus communication
Instrument Dimension and Weight: 402x266x186mm; 5.5kg
Operating environment: <80%RH; 15°C-30°C
Consumable: 5ml Plastic Sample cup for Oils & Greases
Advantages: • Easy installation • Comprehensive monitoring range • Remote diagnosis system

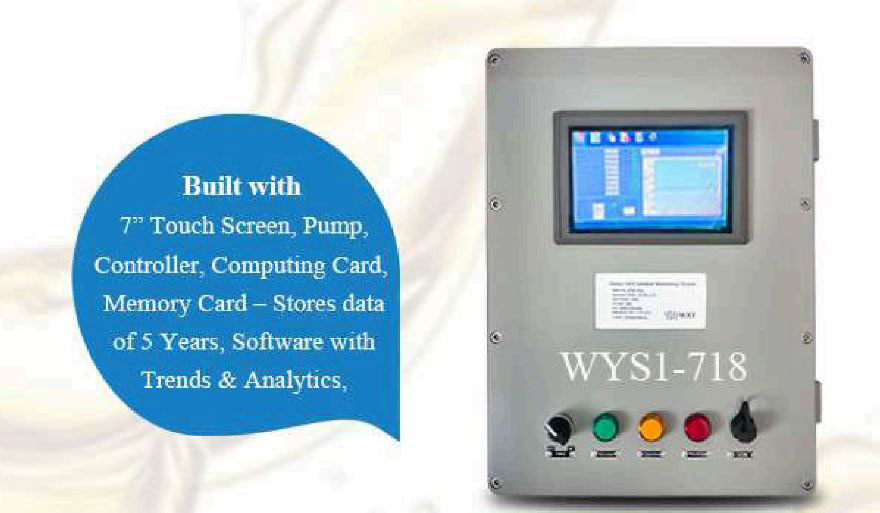

WYSl-718 Analyses 8 parameters simultaneously:
(Fe paiticles >40~99µm,100~199µm, 200~299µm, 300~399µm, >=400µm) (Non-Fe particles>150~199µm, 200-299µm, 300~399µm, 400~499µm, >=500µm)
WNS2-718 Hydraulic/Turbine/Transformer Oil System Comprehensive

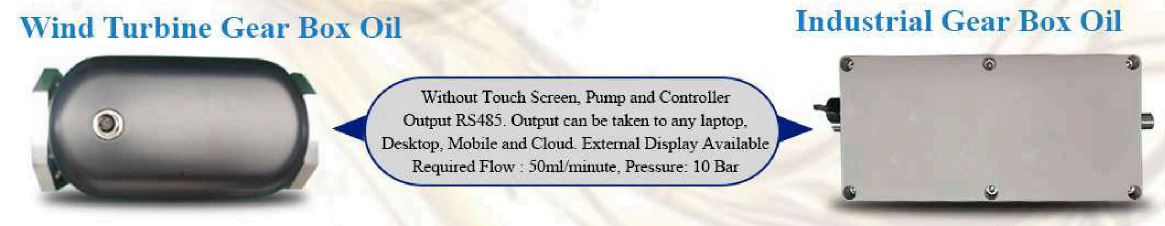

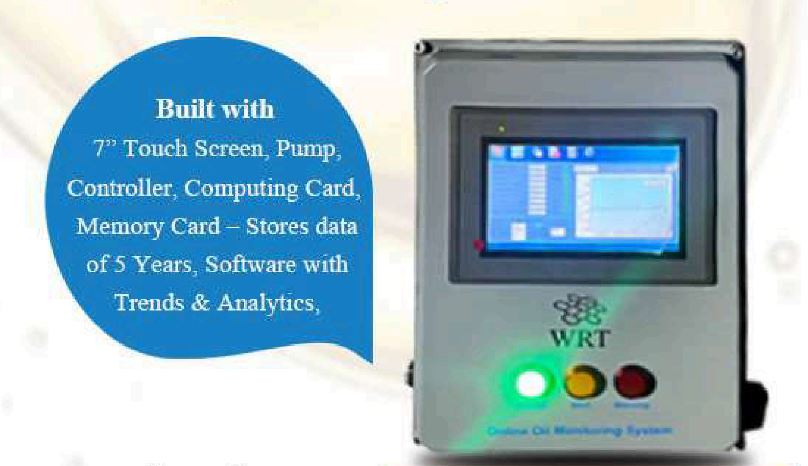

Online oil monitoring system can be customized to your required parameters
On-site quick oil analysis - Particle counting and humidity measurement
Output 8 channels particle counting under ISO 4406, AS1638, SAE AS 4059F
Support to manually calibrate on different viscosity oil sample measurement
Industrial carrycase mounted
Light source: Semiconductor laser
Particle size range: lum~l00 um
Sensitivity: lmn (IS04402) or 4 umm(C) (ISOl 1171)
Pa1ticle cmmting accuracy: ±20% or ± 1 level
Test Repeatability: RSD<5%
Off-line viscosity detection: <=S220cSt (With a pressure device can up to 400cSt)
Detection channel: 8 Channels
Calibration standard: ISO4402 & ISO11171
Test standards: ISO4406, NAS1638, SAE AS4059F
On-line detection pressure: 0.l~0.6MPa (With a pressure device can up to 41 Mpa)
Humidity measurement: 1-100% RH- ±3%
On-line detection pressure: 0.l~0.6MPa (With a pressure device can up to 41 Mpa)
Liquid temperature: 0~80°C
Dimension & Weight: 273x200xl34mm; 5 KG

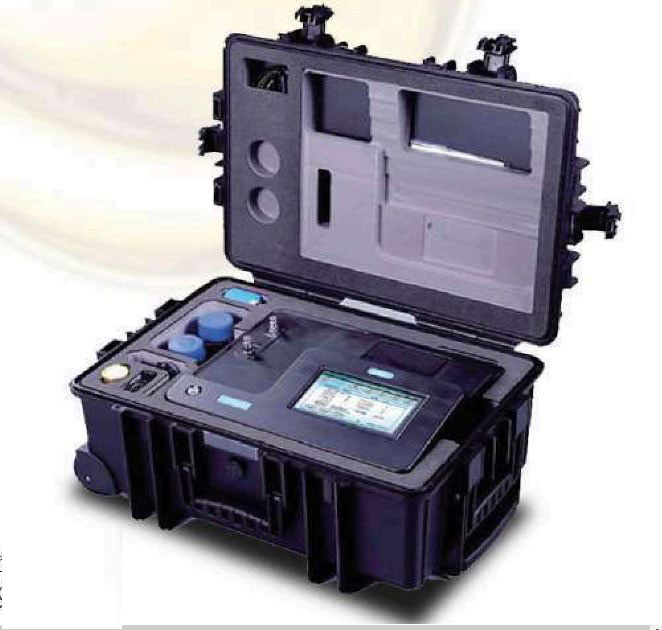

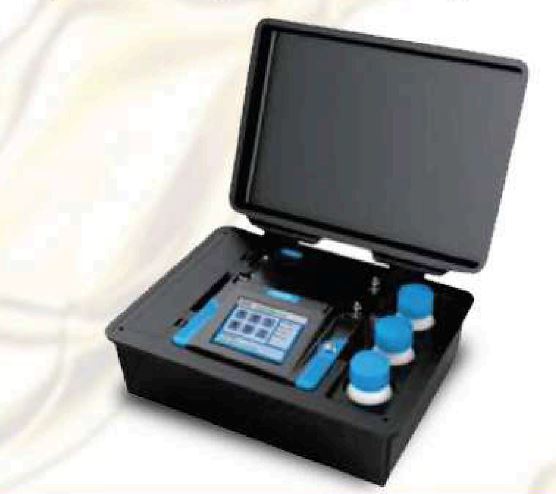

WOT Quick Comprehensive Oil Analyzer acts as a mobile oil analysis lab & can instantly measure oil quality parameters plus AS value or Wear Debris pollution.
Temperature: 0~ 120°C (Accuracy: ±0.3°C)
Density: 600~1250 kg/m3 (Accuracy: ±3%)
Viscosity(cSt): 40°C: 1-l0OOCst; Accuracy: ±5~8%
Water activity (aW) /Humidity: 0~ 1 aW (Accuracy: ±0.02 aW (0~0.6) and ±0.03aW(0.6~0.9) and ±0.04aW(0.9~1)
Oil Quality (Dielectric constant): 1~6 (Accuracy: ±3%)
Optional Partical Counter:
Contaminants and pollution degree: NAS1638, ISO4406 and SAE AS4059F standard
Particle size range: 1-lOOum (oil viscosity up to 320eSt), 8 channel
Accuracy: ± 1 pollution level
Optional Wear Debris:
Fe pa1ticles >40~99µm,100-199µm, 200~299µm, 300~399µm, >=400µm
Non-Fe particles>150-199µm, 200~299µm, 300-399µm, 400~499µm, > 500µm
Measurement
Specifications
Application:
Commonly used mineral oil, synthetic and semi-synthetic lubricating oil, hydraulic oil, transformer oil and other lubricating oils.
Structure drawing:

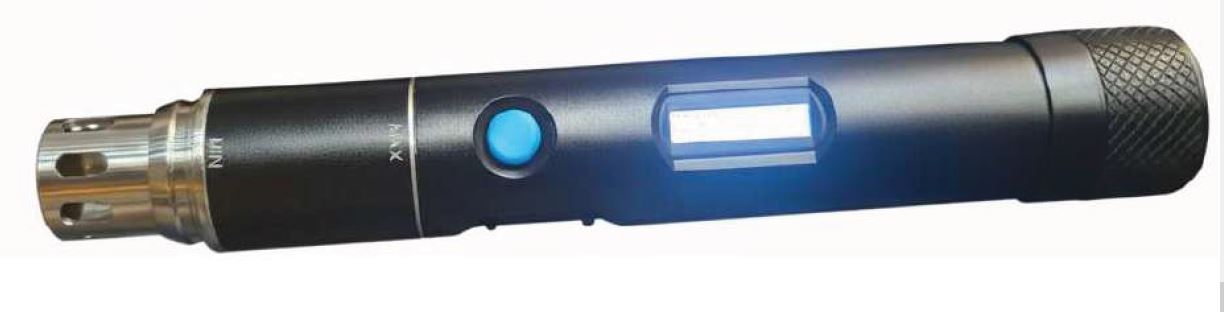

VPOl : Viscosity, Density and Temperature
VP02 : Water Activity, Humidity and Temperature
